Main Features
Standard Warranty: 3 Year
Manufacturer/Supplier: Planar Systems, Inc
Manufacturer Part Number: 997-3406-00
Manufacturer Website Address: www.planar.com
Brand Name: Planar
Product Model: PT1575S

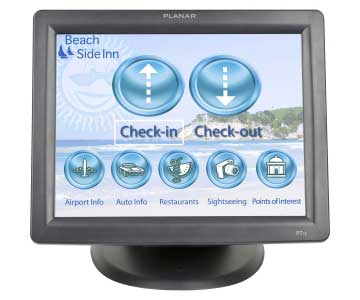

Product Name: PT1575S Touchscreen LCD Monitor
Marketing Information: The PT1575S 15" touch screen monitor is perfect for use in healthcare, retail, point-of-sale and hospitality applications. No drivers are needed for basic touchscreen operation, but for advanced features, drivers are quickly loaded using the easy to follow, step-by-step instructions. The durable SAW touch screen continues to work, even if scratched. Users may use a finger, gloved hand or soft stylus to activate the SAW touch screen. The monitor can be adjusted -5° to 90° based on user preference. OSD buttons are located on the side of the monitor to minimize setting changes and can be locked to eliminate unauthorized setting changes.
Product Type: LCD Touchscreen Monitor
Screen Size: 15"
Screen Mode: XGA
Maximum Response Time: 8 ms
Aspect Ratio: 4:3
Horizontal Viewing Angle: 140°
Vertical Viewing Angle: 125°
Adjustable Display Angle: Yes
Mount Type: Wall Mountable, Arm-mountable
Maximum Resolution: 1024 x 768
Standard Refresh Rate: 75 Hz
Color Supported: 16.7 Million Colors
Contrast Ratio: 500:1
Brightness: 250 Nit
Speakers: Yes
Touchscreen: Yes
Touchscreen Type: Surface Acoustic Wave
USB: Yes
VGA: Yes
Built-in Devices: Speaker
Input Voltage: 110 V AC, 220 V AC
Operating Power Consumption: 25 W
Standby Power Consumption: 4 W
VESA Mount Compatible: Yes
VESA Mount Standard: 75 x 75
Color: Black
Height: 11.60"
Width: 14.30"
Depth: 2.40"
Height with Stand: 12.60"
Width with Stand: 14.30"
Depth with Stand: 8.10"
Weight (Approximate): 9.50 lb
Weight with Stand (Approximate): 12.50 lb
Package Contents: PT1575S Touchscreen LCD Monitor , Power Cord , VGA Cable , RS-232 Cable , USB Cable (A to B) , Audio-in Cable , CD-ROM (Driver) , User's Guide , Quick Start Guide
Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
UPC#: 0810689034063
