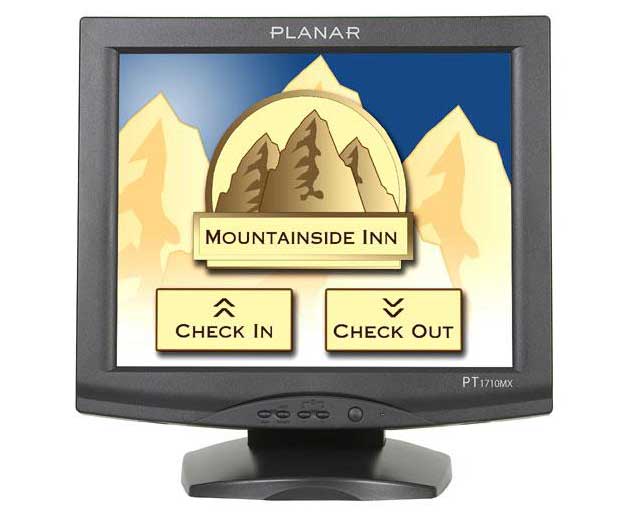

The 17" PT1710MX economical touch screen monitor - is perfect for retail, POS and hospitably applications. The touch LCD uses a 5-wire resistive touch screen and comes standard with dual serial and USB touch interface. The result is an exceptional, cost-effective touch screen monitor.

Specifications

Model (Family)	PT1710MX (PT Line)
Product Name	PT1710MX
Planar Part Number	997-3349-00 (Black), 997-3351-00 (White)
Viewable Size	17" diagonal (13.30" horizontal x 10.64" vertical)
Touchscreen Type	5-wire Resistive
Touchscreen Interface	Dual Serial/USB
Transmissivity	76% (typical)
Contrast Ratio (Typical)	1000:1
Viewing Angle (Typical)	170° horizontal, 160° vertical
Response Time (Typical)	5 ms
Brightness (w/touchscreen)	190 cd/m²
Brightness (w/o touchscreen)	250 cd/m²
Brightness (Typical)	see Brightness w/touchscreen and Brightness w/o touchscreen
Display Type	LCD Active Matrix Flat Panel Display (TFT)
Display Resolution	1280 X 1024
Tilt Range	-3° to +25°
Palette	16.7 million colors
Pixel Pitch	0.264 mm
Refresh Rate	56-75 Hz (60 Hz recommended)
Dimensions (W x H x D)	16.3" x 16.2" x 8.3" (414.0 mm x 411.5 mm x 210.8 mm
Dimensions without Stand	16.3" x 14.2" x 2.5" (414.0 mm x 360.7 mm x 63.5 mm)
Display Weight	With Stand: 14.7 lbs (6.7 kg) (net), 20.2 lbs (9.2 kg) (shipping)
Display Weight (w/o stand)	11.1 lbs (5.0 kg)
Panel Depth	2.5"
Video Inputs	Analog
Audio Output	Two integrated stereo speakers, 1 W each
Compatibility	Windows® 7, Vista, XP, 2000, ME, 98, NT 4.0, CE, XP Embedded, Apple® Mac OS, Linux, HID Compliant - no drivers needed for basic touchscreen operation
External Connections	DC power-in barrel connector, D-sub 15 pin, Audio In connector, Serial RS-232 connector, USB connector
Power Supply	External
Power Requirements	100-240 VAC, 50/60 Hz
Power Consumption	40W (2W standby)
Operating Temperature	+5° to +35° C
VESA Compatible/Location	Built-in 100 mm VESA, back
Service and Support	3-Year Customer First™ Warranty featuring FREE 2-Day Advance Replacement (US only)
Options / Features	Anti-glare coating, Multi-language display, On screen display (OSD), Kensington® security lock function, Built-in 100 mm VESA, back
Product Approvals	UL/c-UL, FCC-Class B, TUV-T mark, CE, RoHS
In the Box	PT1710MX 17" Touchscreen LCD Monitor, Power Adapter, Power Cord, VGA Cable, RS-232 Cable, USB Cable (A to B), Audio-in Cable, Driver CD, User’s Guide, Quick Start Guide
